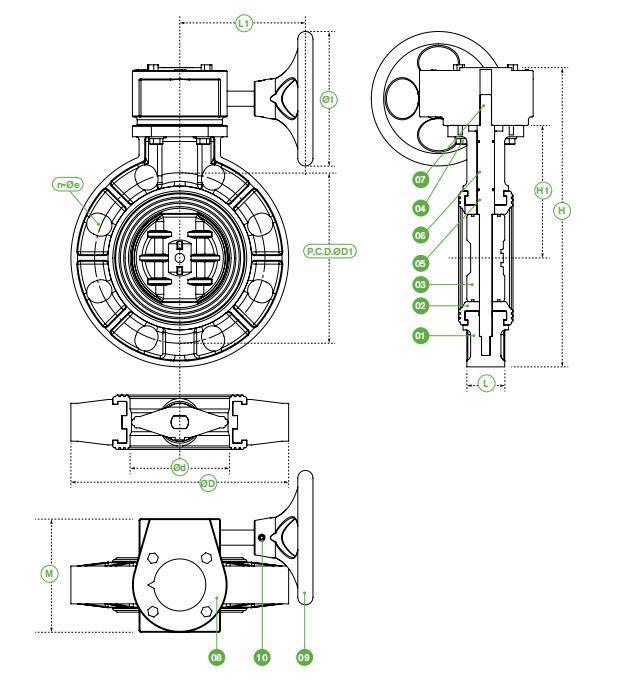

China Economic Plastic PVC Gear Butterfly Valve with Geartype 1. Specification: | NO | PART | MATERIAL | OTY |
| 1 | Body | PVC, CPVC, PPG | 1 |
| 2 | Seat seal | EPDM, FPM | 1 |
| 3 | DISC | PVC, CPVC, PPG | 1 |
| 4 | Bolt | SUS304 | 4 |
| 5 | Stem | STEEL/SUS304/SUS316 | 1 |
| 6 | O-ring | EPDM,FPM | 2 |
| 7 | Key | STEEL | 1 |
| 8 | Gear box | IRON | 1 |
| 9 | Handle wheel | IRON | 1 |
| 10 | Pin | STEEL | 1 |
| | | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 20" |
| Size | DN | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
| ΦD | 228 | 258 | 287 | 344 | 412 | 460 | 500 | 565 | 670 |
| D.C.P.ΦD | DIN | 180 | 210 | 240 | 295 | 350 | 400 | 460 | | |
| ANSI | 191 | 216 | 241 | 298 | 362 | 432 | 476 | 540 | |
| JIS | 175 | 210 | 240 | 290 | 355 | 400 | 445 | 510 | |
| Φd | | 98 | 122 | 146 | 179 | 255 | 302 | 345 | 395 | 490 |
| L | | 54 | 64 | 70 | 88 | 98 | 108 | 88 | 98 | 135 |
| Φ1 | | 145 | 280 | 280 | 280 | 280 | 280 | 380 | 380 | 280 |
| L1 | | 120 | 200 | 200 | | 220 | 220 | 280 | 280 | |
| H1 | | 140 | 168 | 181 | | 260 | 280 | 410 | 490 | 520 |
| H | | 340 | 385 | 417 | | 551 | 595 | 670 | 770 | |
| M | | 120 | 180 | 180 | | 180 | 180 | 250 | 250 | 865 |
| N | | 90 | 100 | 100 | | 130 | 130 | 220 | 220 | |
| n-Φe | DIN | 8-Φ19 | 8-Φ19 | 8-Φ23 | 8-Φ23 | 12-Φ25 | 12-Φ25 | 16-Φ25 | 16-Φ27 | 20-Φ32 |
| ANSI | 8-Φ19 | 8-Φ19 | 8-Φ23 | 8-Φ23 | 12-Φ25 | 12-Φ25 | 12-Φ29 | 16-Φ29 | |
| JIS | 8-Φ19 | 8-Φ19 | 8-Φ23 | 8-Φ23 | 12-Φ25 | 12-Φ25 | 16-Φ25 | 16-Φ25 | 16-Φ27 |
| PN | PSI | 150 | 150 | 150 | 150 | 100 | 100 | 60 | 60 | 60 |
| Mpa | 1 | 1 | 1 | 1 | 0.6 | 0.6 | 0.4 | 0.4 | 0.4 |
2. PVC Materials: (1). Light weight
(2) .Poor resistance to high temperature ,waterproof and moisture-proof
(3). Flame retardant and heat insulation
3. Features (1) Beautiful, high strength, corrosion resistance.
(2) Long life, replacement is more convenient.
(3) Cast iron gear box, high reduction ratio, accurate opening; saves switching space.
(4) Butterfly rib design ensures the safety of the pipeline system; patented valve body and valve seat are inlaid to ensure low torque. 4. Packages and Handle Display

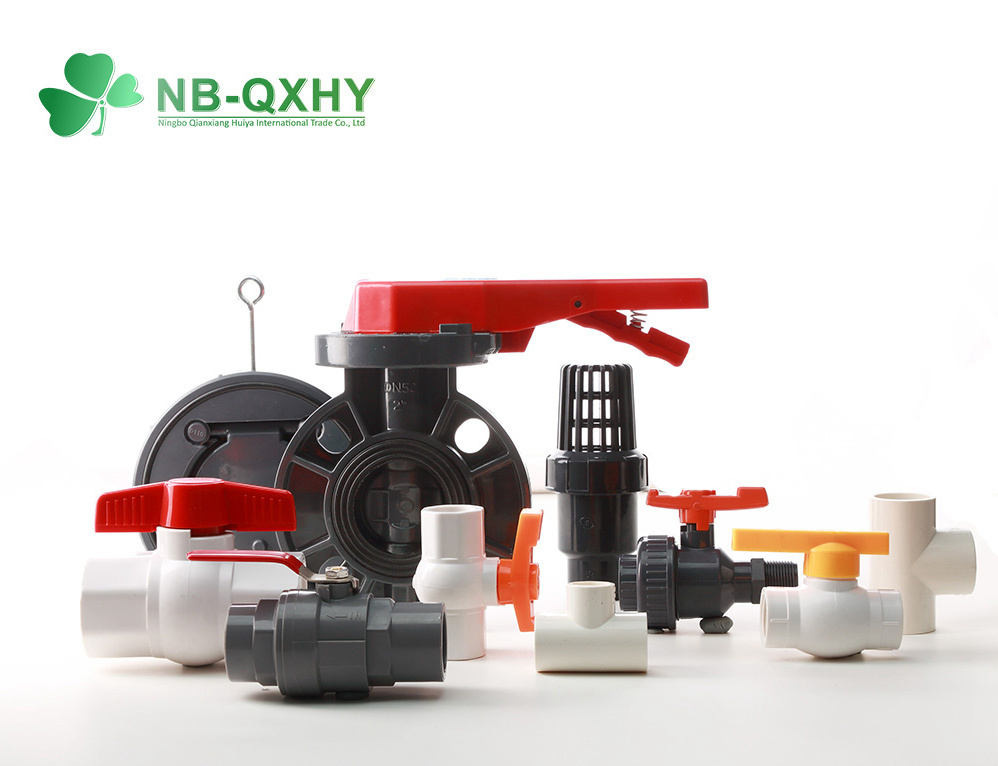

5. Our Other Related Products 6. About us Ningbo Qianxiang Huiya International Trade Co., Ltd (Set up in 2012) is a professional supply plastic valve/fitting and irrigation products company!
We can be flexible operation, fast professional services, matching to help customers purchase building materials demand products!
We supply detail like kinds of PVC ball valve, PVC union valve, butterfly valve, PVC fitting, PP fitting, PP saddle clamp, sprinkler, PVC layflat hose, drip pipe and so on other for irrigation use prodcuts.
Our development philosophy is
1, Quality first, customer supreme!
2, Keep innovate and keep going beyond!
3, Unique to stay ahead!
We sincerely invite all domestic and overseas clients to come to advise and cooperation.
7. FAQ Our Advantages: (1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;
(2) Well and high quality control, within 1% leakage;
(3) Environment friendly, non-toxic, good looking and long service life;
(4) Light weight, easy to handle and transport;
(5) Soft colors and excellent design, suitable for installation either exposed or hidden;
(6) Wonderful ability in chemical corrosion resistance;
(7) Easy and fast installation, making cost minimized;
(8) Widely used in building, irrigation, industry and swimming pool;
(9) Small order acceptable;
(10) Customer's design and logo are welcome.
Why Us?
(1) We provide OEM service and submit Various styles, latest designs to our clients;
(2) We work with big customers in Southeast Asia, Africa, Middle East, North America, South America;
(3) According to the needs of customers in different regions, we match different quality and thickness valves with various styles, so that our customers are very competitive in the market!
(4) Our high quality PVC valve can be consistent with European and American national brand valves!
(5) We have great experience on providing high quality products and most professional service to clients about 10 years more!
(6) Customers choose our products, can mix and match our PVC pipe fittings, PVC butterfly valves, PP Fittings, irrigation products to buy together, so that the customer product line is more abundant, both quality and delivery time are guaranteed.
(7) We can flexible from China any port export! Welcome you inquiry us!
