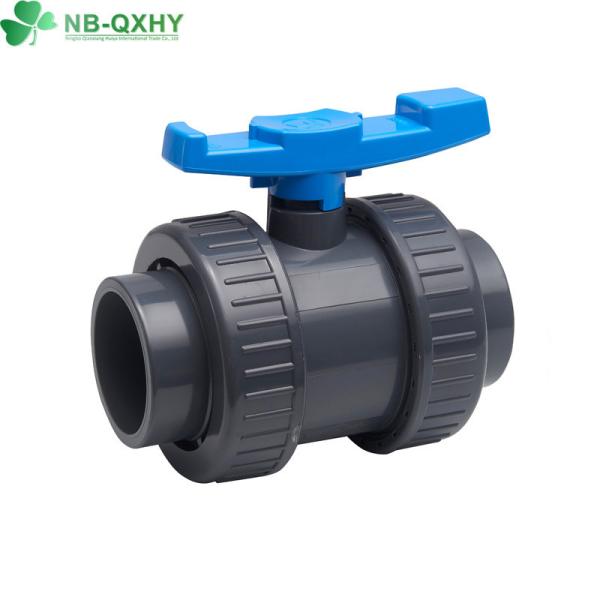

Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly

Model NO. : 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4",5"

Structure : Fixed Ball Valve

Type : Fixed Ball Valve

Function : Shutoff

Temperature : Normal Temperature

Application : Industrial Usage, Water Industrial Usage, Household Usage

Color : Light Gray, Darg Gray, Black, White

Standard Like : DIN, BSPT, NPT, ANSI

Quality : EPDM Rubber+PVC Ball, PVC Handle

Package : Plastic Bag Each One, Strong Export Carton

Feature : New Fashion Handle, Easy Use, Long Service Life

Transport Package : Carton, Polybag, Color Box or Customized

Specification : 1/2′, 3/4′, 1′, 1-1/4′, 1-1/2′, 2′, 2-1/2′, 3", 4"

Trademark : QX

Origin : Zhejiang, China

HS Code : 8481804090

Supply Ability : 70000 Piece /Month

Media : Water

Material : PVC

Connection Form : Socket or Threaded

Driving Mode : Manual

Nominal Pressure : Pn10, Pn16

Channel : Straight Through Type

Samples : US$ 3/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

MOQ : 1pc

Packaging Details : Customized

Delivery Time : 5-8 days

Payment Terms : L/C,T/T

Contact Now

Factory Direct Supply red/blue handle True union ball valve
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly

Adevantages:
1.high pressure resistant:PN10,PN16,PN35,PN40;150psi,235psi
2.100% new material; rubber ring with EPDM ; non-toxic; environmentl-friendly
3. Oven test no sign of bubble or crack; within 1% leakage;
4. Light weight, easy to handle and transport; Wonderful ability in chemical corrosion resistance;
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly

Standard and size
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly
SIZE DIN(MM) BS(MM) JIS(MM) ANSI(MM) NPT THREADED BSPT THREADED
DN15 (1/2") 20 22 22 21.34 14 14
DN20 (3/4") 25 26 26 26.67 14 14
DN25 (1") 32 34 32 33.4 11.5 11
DN32( 1 1/4") 40 42 38 42.16 11.5 11
DN40(1 1/2") 50 48 48 48.26 11.5 11
DN50 (2") 63 60 60 60.33 11.5 11
DN65( 21/2") 75 75 76 73.03 8 11
DN80 (3") 90 89 89 88.9 8 11
DN100 (4") 110 114 114 114.3 8 11

Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly

The materials of each part
NO. PART Material QTY
1 Handle PVC 1
2 Body UPVC, CPVC 1
3 Stem UPVC, CPVC 1
4 Stem O-RING EPDM, NBR 2
5 Seat Seal TPE TPV 2
6 Ball UPVC, CPVC 1
7 CARRIER O-RING EPDM, NBR 1
8 UNION O-RING EPDM, NBR 2

The feature of PVC materials:
light weight
Poor resistance to high temperature ,waterproof and moisture-proof
Flame retardant and heat insulation
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly

Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly
Straight Through Type Channel 21/2" Red/Blue Handle Ppvc True Union Ball Valve Directly
A: Advantage

(1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;

(2)Well and high quality control, within 1% leakage;

(3)Environment friendly, non-toxic, good looking and long service life;

(4) Light weight, easy to handle and transport;

(5) Soft colors and excellent design, suitable for installation either exposed or hidden;

(6)Wonderful ability in chemical corrosion resistance;

(7) Easy and fast installation, making cost minimized;

(8) Widely used in building, irrigation, industry and swimming pool;

(9)Small order acceptable;

(10) Customer's design and logo are welcome.

B Why choose QX?
(1) We provide OEM service and submit Various styles, latest designs to our clients;

(2) We work with big customers in Southeast Asia, Africa, Middle east, North America, South America;

(3) According to the needs of customers in different regions, we match different quality and thickness valves with various styles, so that our customers are very competitive in the market!
(4)Our high quality PVC valve can be consistent with European and American national brand valves!

(5) We have great experience on providing high quality products and most professional service to clients about 10 years more!

(6). Customers choose our products, can mix and match our PVC pipe fittings, PVC butterfly valves, PP Fittings, irrigation products to buy together, so that the customer product line is more abundant, both quality and delivery time are guaranteed.
(7) We can flexible from China any port export ! Welcome you inquiry us!
